基于区间数学方法的结构参数识别

宋海洋

doi:10.21656/1000-0887.440319

基于区间数学方法的结构参数识别

doi: 10.21656/1000-0887.440319

宋海洋^{1, 2, ,}

1.
东北电力大学建筑工程学院，吉林吉林 132012
2.
东北电力大学吉林省电力基础设施安全评估与灾害防治重点实验室，吉林吉林 132012

基金项目:

吉林省教育厅科学技术研究项目 JJKH20230143KJ

详细信息

通讯作者:
宋海洋(1986—)，男，高级工程师，博士，硕士生导师(通讯作者. E-mail: paper2021@163.com)

中图分类号: O347.1
计量
- 文章访问数: 383
- HTML全文浏览量: 177
- PDF下载量: 42
- 被引次数: 0
出版历程
- 收稿日期: 2023-10-22
- 修回日期: 2024-01-29
- 刊出日期: 2024-05-01

Structural Parameter Identification Based on the Interval Mathematics Method

SONG Haiyang^{1, 2
, ,}

1.
School of Civil Engineering and Architecture, Northeast Electric Power University, Jilin, Jilin 132012, P.R.China
2.
Key Lab of Electric Power Infrastructure Safety Assessment and Disaster Prevention of Jilin Province, Northeast Electric Power University, Jilin, Jilin 132012, P.R.China

摘要

摘要: 统计能量分析方法是目前处理结构高频振动的有效方法之一，在航空、航天、船舶和机械等领域得到了广泛的应用. 内损耗因子和耦合损耗因子是统计能量分析方法中非常重要的两个结构参数，这些参数可以利用试验测量得到的外部输入功率和结构模态能量通过理论方法识别出来. 传统的统计能量分析参数识别方法没有考虑输入功率和模态能量的测量误差对识别结果的影响，识别结果精度较低，难以满足工程需要. 该研究将区间数学方法应用于统计能量分析的参数识别，提出了一种可以考虑模态能量测量误差和输入功率测量误差的参数识别方法，揭示了模态能量和输入功率的测量误差对参数识别的影响规律，提高参数识别的准确性. 该文的研究内容可以为后续的结构设计和安全性分析提供参考.
- 区间数学 /
- 参数识别 /
- 统计能量分析 /
- 结构振动
Abstract: The statistical energy analysis (SEA) method was popularly employed to handle the high-frequency dynamics problems in many engineering fields such as aerospace and shipping. The damping loss factor and coupling loss factor were the major parameters in the SEA theory, and they can usually be identified with the measured external input power and structural modal energy. The measurement errors of the input power and modal energy were not considered in the traditional parameter identification, where the accuracy of the identified results was relatively low. The interval mathematics method was applied to the parameter identification in this study, and the measurement errors of the input power and modal energy were fully considered. The effects of the measurement errors on the parameter identification were revealed, and the accuracy of the identified results was improved. The work can be helpful for the structure design and safety analysis.
- interval mathematics /
- parameter identification /
- statistical energy analysis /
- structural vibration

HTML全文

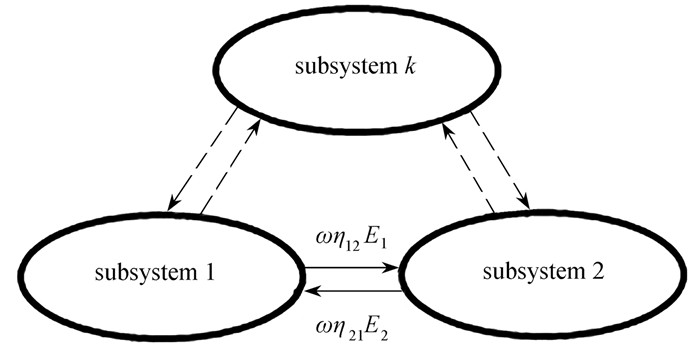

图 1 统计能量分析子系统间的能量耗散和能量传输

Figure 1. Energy dissipation and energy transfer between SEA subsystems

下载: 全尺寸图片幻灯片

图 2 统计能量分析模型第m次激励效果图

Figure 2. The mth excitation on the SEA model

下载: 全尺寸图片幻灯片

图 3 分析流程图

Figure 3. The analytical process of the full text

下载: 全尺寸图片幻灯片

图 4 两壳耦合结构

Figure 4. The 2-shell coupling structure

下载: 全尺寸图片幻灯片

图 5 耦合损耗因子区间η₁₂^I

Figure 5. The coupling loss factor interval η₁₂^I

下载: 全尺寸图片幻灯片

图 6 内损耗因子区间η₁^I

Figure 6. The damping loss factor interval η₁^I

下载: 全尺寸图片幻灯片

图 7 六板耦合结构

Figure 7. The composite structure with 6 plates

下载: 全尺寸图片幻灯片

图 8 每个子系统的外部输入功率

Figure 8. The exterior input power of each subsystem

下载: 全尺寸图片幻灯片

图 9 每个子系统的模态能量

Figure 9. The modal energy caused by the exterior input power

下载: 全尺寸图片幻灯片

图 10 两钢板耦合结构的振动试验^[16]

Figure 10. The vibration experiment of 2 connected steel plates^[16]

下载: 全尺寸图片幻灯片

表 1 每个子系统的外部输入功率

Table 1. The exterior input power of each subsystem

f/Hz	P_{1, 1}/W	P_{2, 1}/W	P_{1, 2}/W	P_{2, 2}/W
1 000	0.150	0.020	0.012	0.170
2 000	0.300	0.050	0.025	0.350
3 000	0.600	0.100	0.050	0.700
4 000	1.500	0.250	0.125	1.750

下载: 导出CSV

表 2 带有±3%测量误差的外部输入功率

Table 2. The exterior input power with ±3% measurement errors

f/Hz	P_{1, 1}^I/W	P_{2, 1}^I/W	P_{1, 2}^I/W	P_{2, 2}^I/W
1 000	[0.145 50, 0.154 50]	[0.019 40, 0.020 60]	[0.011 64, 0.012 36]	[0.164 90, 0.175 10]
2 000	[0.291 00, 0.309 00]	[0.048 50, 0.051 50]	[0.024 25, 0.025 75]	[0.332 50, 0.367 50]
3 000	[0.582 00, 0.618 00]	[0.097 00, 0.103 00]	[0.048 50, 0.051 50]	[0.679 00, 0.721 00]
4 000	[1.455 00, 1.545 00]	[0.242 50, 0.257 50]	[0.121 25, 0.128 75]	[1.697 50, 1.802 50]

下载: 导出CSV

表 3 每个子系统的模态能量

Table 3. The modal energy of each subsystem

f/Hz	e_{1, 1}/J	e_{2, 1}/J	e_{1, 2}/J	e_{2, 2}/J
1 000	1 300	450	300	750
2 000	1 500	600	400	1 000
3 000	2 300	900	600	1 500
4 000	4 600	1 800	1 200	3 000

下载: 导出CSV

表 4 带有±3%测量误差的模态能量

Table 4. The modal energy with ±3% measurement errors

f/Hz	e_{1, 1}^I/J	e_{2, 1}^I/J	e_{1, 2}^I/J	e_{2, 2}^I/J
1 000	[1 261, 1 339]	[437, 463]	[291, 309]	[728, 772]
2 000	[1 455, 1 545]	[582, 618]	[388, 412]	[970, 1 030]
3 000	[2 231, 2 369]	[873, 927]	[582, 618]	[1 455, 1 545]
4 000	[4 462, 4 738]	[1 746, 1 854]	[1 164, 1 236]	[2 910, 3 090]

下载: 导出CSV

表 5 识别出的参数区间

Table 5. Identified parameter intervals of the composite structure

f/Hz	η₁^I	η₁₃^I	η₁₆^I
1 000	[0.081 8, 0.084 2]	[0.004 4, 0.008 8]	[0.002 5, 0.004 1]

下载: 导出CSV

表 6 第一次试验测量得到的输入功率和模态能量

Table 6. The measured input power and modal energy in the 1st test

f/Hz	subsystem 1		subsystem 2
f/Hz	input power P/W	modal energy e/J	input power P/W	modal energy e/J
1 000	3.20×10^－11	5.06×10^－7	0	3.22×10^－7
2 000	2.39×10^－11	1.022×10^－6	0	5.500×10^－8

下载: 导出CSV

表 7 第二次试验测量得到的输入功率和模态能量

Table 7. The measured input power and modal energy in the 2nd test

f/Hz	subsystem 1		subsystem 2
f/Hz	input power P/W	modal energy e/J	input power P/W	modal energy e/J
1 000	0	4.57×10^－9	7.90×10^－13	4.52×10^－8
2 000	0	1.65×10^－10	7.962×10^－14	6.34×10^－9

下载: 导出CSV

表 8 由传统方法识别的参数结果^[16]

Table 8. Traditional identification results of SEA parameters^[16]

f/Hz	η₁	η₂	η₁₂	η₂₁
1 000	0.08	0.004	0.009 0	0.007 0
2 000	0.03	0.007	0.000 8	0.000 4

下载: 导出CSV

表 9 参数区间的识别结果

Table 9. Identified parameter intervals of 2 connected steel plates

f/Hz	η₁^I	η₂^I	η₁₂^I	η₂₁^I
1 000	[0.075 08, 0.084 92]	[0.003 75, 0.004 25]	[0.007 85, 0.010 16]	[0.006 10, 0.007 89]
2 000	[0.028 25, 0.031 75]	[0.006 60, 0.007 39]	[0.000 69, 0.000 91]	[0.000 35, 0.000 45]

下载: 导出CSV
